Description

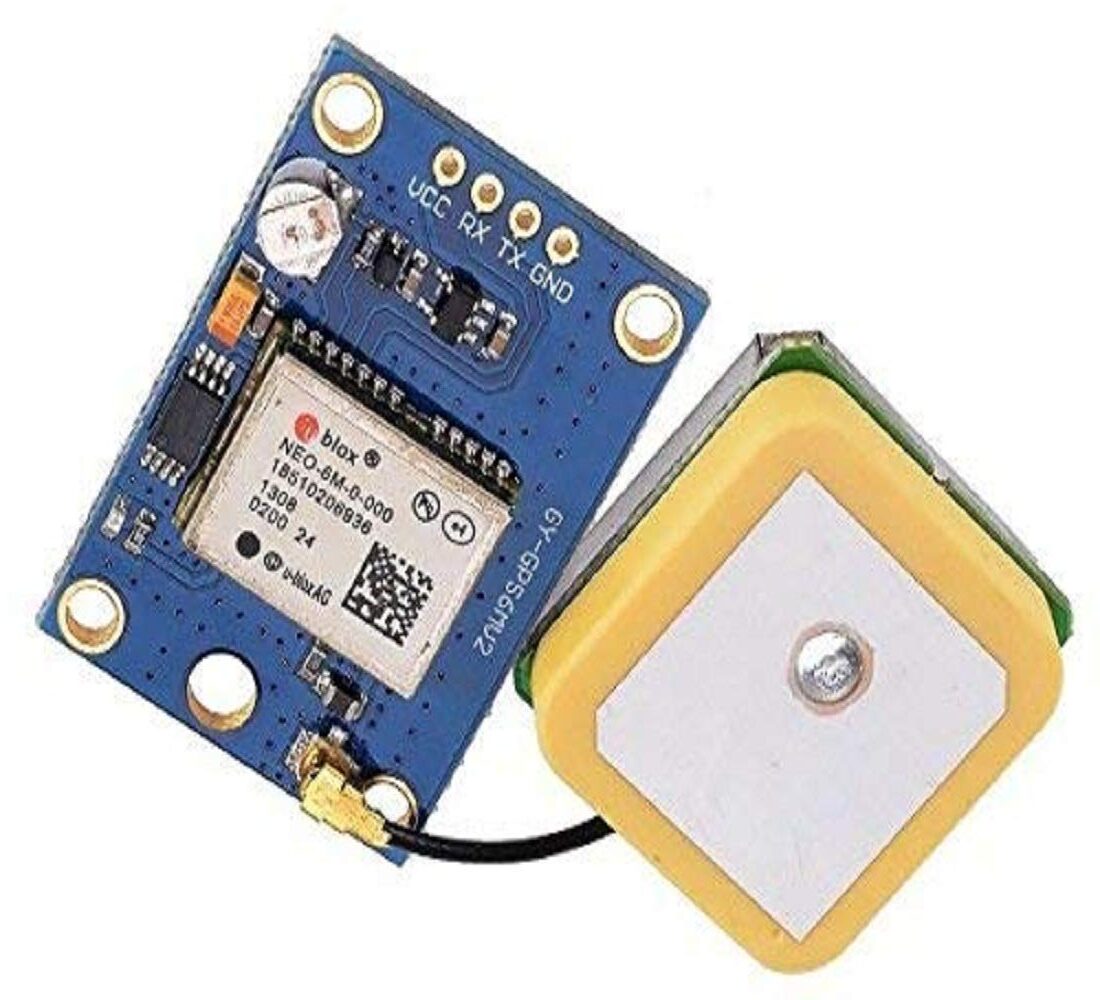

The NEO-6M GPS Module is one of the most widely used and reliable GNSS (Global Navigation Satellite System) receivers for embedded systems, IoT devices, and robotics.
Powered by the u-blox NEO-6M chipset, this module delivers fast satellite acquisition, high accuracy, and stable GPS data even under challenging signal conditions.

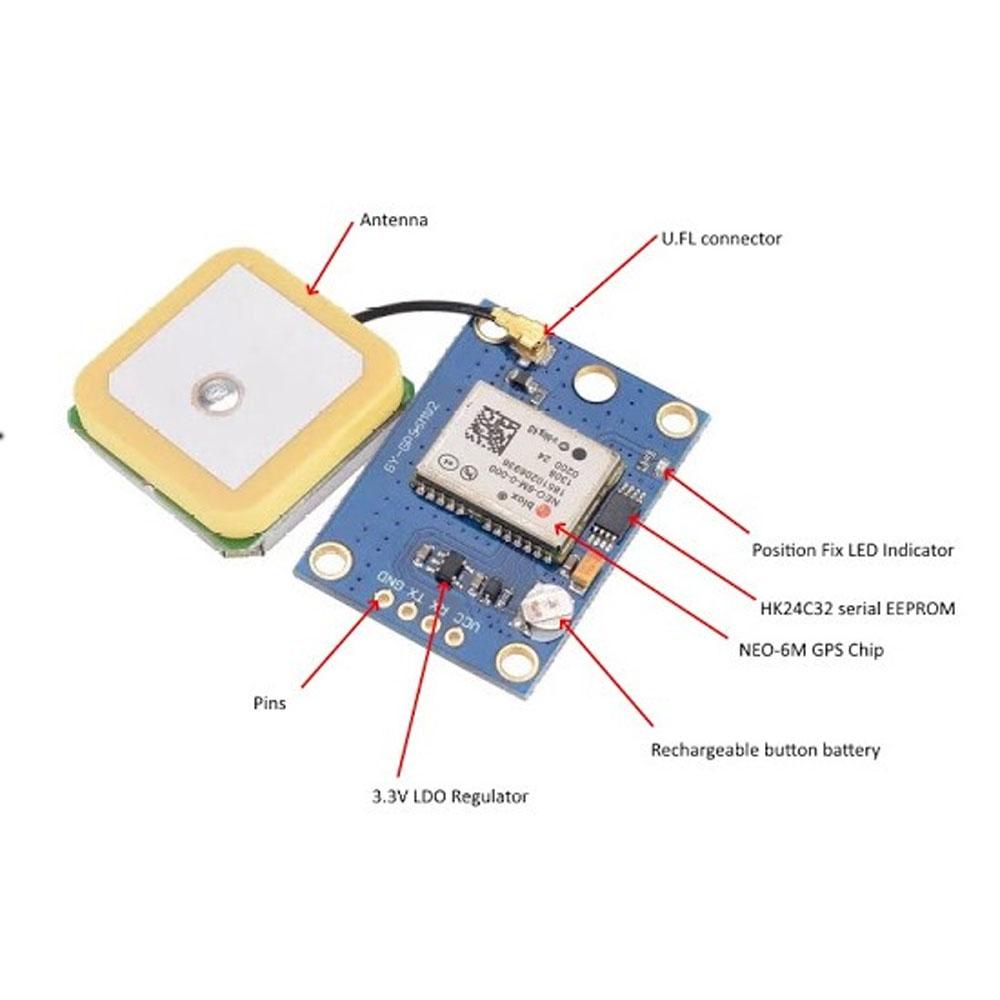

It includes:
-
A high-gain ceramic patch antenna
-
On-board 3.3V LDO regulator
-
Backup battery (RTC) for hot-start capability
-
EEPROM for configuration storage
With a simple UART serial interface, it works seamlessly with 3.3V microcontrollers such as STM32 (Raayan Mini), ESP32, and 3.3V Arduino boards.
Perfect for:
-
GPS-based tracking systems
-
Robotics & autonomous navigation
-
Drones and UAVs
-
IoT location monitoring
-
Vehicle telemetry
-
Time synchronization applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Chipset | u-blox NEO-6M |
| GPS Sensitivity | –160 dBm tracking |
| Position Accuracy | < 2.5 m CEP |
| Baud Rate | 9600 (default) |
| Interface | UART (TX, RX) |
| Voltage Input | 3.3V – 5V |
| Operating Current | 40–60 mA |
| Antenna | 25×25 mm ceramic patch |
| RTC Battery | CR1220 (hot start support) |
| Cold Start | 27–38 seconds |
| Hot Start | 1 second |
| Update Rate | 1 Hz (max 5 Hz) |
| Dimensions | ~45 mm × 35 mm |
| Data Format | NMEA (GPGGA, RMC, GSV, etc.) |
Reference Links
-
NEO-6M Datasheet: https://www.u-blox.com/sites/default/files/products/documents/NEO-6_DataSheet_%28GPS.G6-HW-09005%29.pdf
- NMEA Sentence Guide: https://components.ubitap.com/datasheet/UART_GPS_NEO-6M_UserManual.pdf
