Description

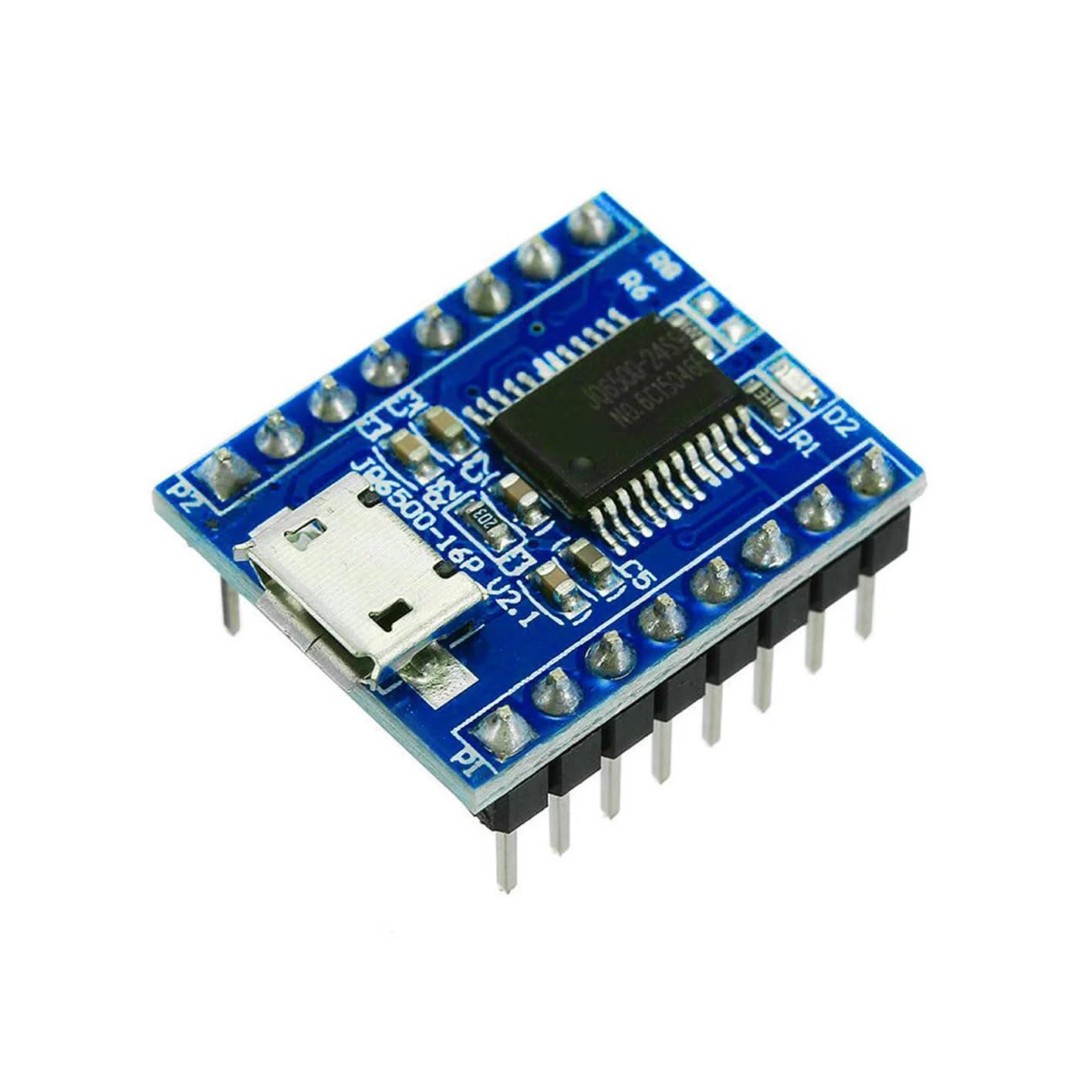

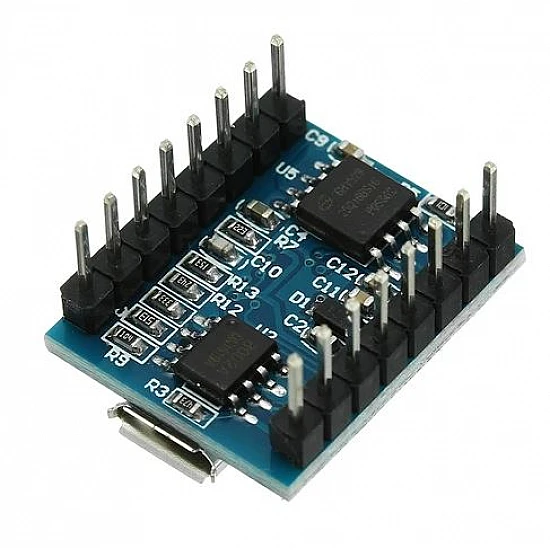

The JQ6500-16P MP3 Audio Voice Module is an advanced standalone sound playback module designed to add high-quality voice, sound, or music playback to embedded and automation systems.
Equipped with the JQ6500-16P chipset, it integrates on-board 16 Mbit (2 MB) flash memory, a 24-bit DAC audio engine, and multiple control interfaces including UART serial and 5-key hardware trigger inputs.
The 16-pin layout provides speaker outputs, line-out pins, and power flexibility, making it suitable for both stand-alone and microcontroller-controlled operation.
Perfect for:
-
Embedded & IoT projects (STM32, ESP32, Arduino, Raayan Mini, etc.)
-
Smart automation, alarms, or voice notifications
-
Industrial systems requiring programmable audio feedback
-
Educational labs and student training on embedded audio systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | JQ6500-16P |
| Flash Memory | 16 Mbit (≈ 2 MB) built-in |
| Supply Voltage | 3.2 V – 5.0 V DC |
| Operating Current | ≈ 20 mA (no speaker load) |
| Control Modes | UART / 5 Key Trigger / ADKEY |
| Audio Format | MP3 (ISO 11172-3 / ISO 13813-3) |
| Sample Rates | 8 kHz – 48 kHz |
| Output | SPK+ / SPK– (Amplified), DAC_L / DAC_R (Line Out) |
| Output Power | 8 Ω / 0.5 W (typical) |
| Logic Compatibility | 3.3 V / 5 V MCU logic |
| Interface Pins | 16-pin (2×8 header) |
| Dimensions | ~38 mm × 22 mm × 10 mm |
| Operating Temperature | –40 °C to +70 °C |
| File Upload Method | USB (via JQ6500 Uploader utility) |
Usage Tips
-
Trigger Mode: Connect buttons to pins K1–K5 to play MP3 files (e.g., 001.mp3 → K1, 002.mp3 → K2).
-
Serial Mode: Connect TX/RX to your MCU UART (3.3 V/5 V) and use standard 0x7E command set for playback, volume, next/previous, etc.
-
Speaker Output: Use SPK+/SPK- for direct small speaker or DAC_L/DAC_R for external amplifier.
-
Use JQ6500 PC Uploader to copy MP3 files into flash (Windows utility).
-
Works perfectly with STM32, ESP32, AVR, or Raayan Mini boards in embedded audio projects.
