Description

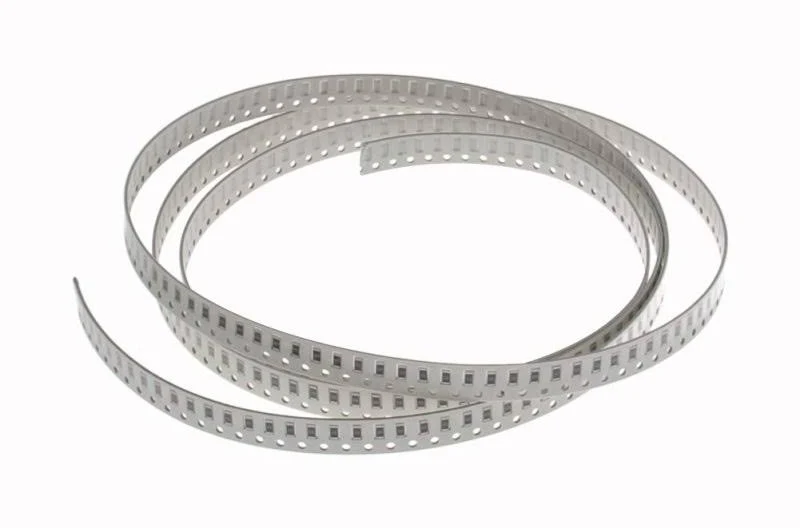

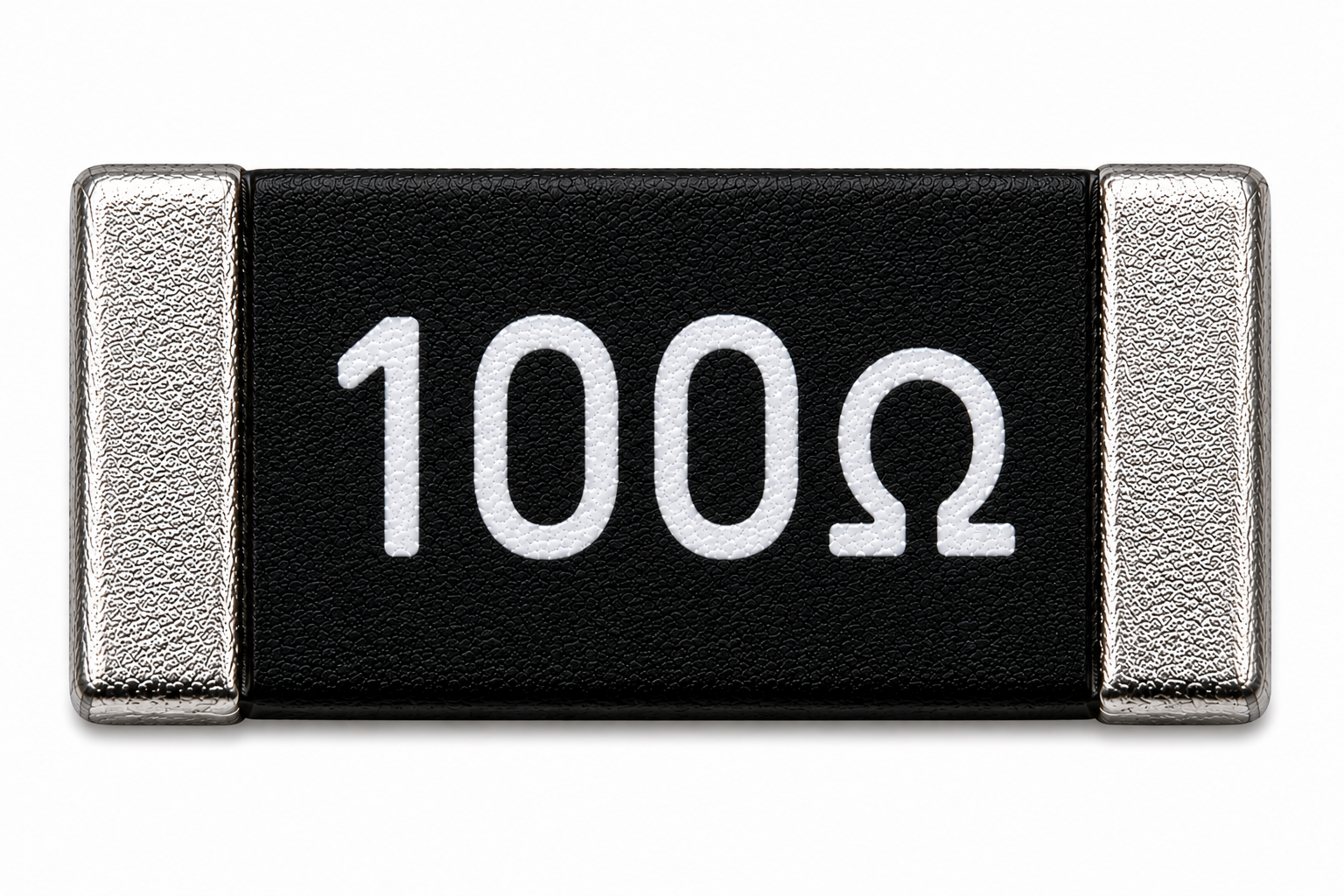

The 100Ω SMD Resistor is a surface-mount fixed resistor designed to provide accurate resistance and reliable performance in modern electronic circuits. It is widely used for current limiting, signal conditioning, voltage division, pull-up/pull-down networks, and circuit protection applications.
The compact SMD chip resistor package enables space-saving PCB layouts and supports automated Surface Mount Technology (SMT) assembly. It provides stable resistance characteristics, low parasitic effects, and reliable operation in high-density electronic designs.
The 100 Ohm SMD resistor is commonly used in communication interfaces, LED circuits, driver circuits, embedded systems, microcontroller boards, and IoT devices. It is suitable for applications involving Arduino, STM32, ESP32, ESP8266, and custom PCB designs.
With excellent reliability and compact size, this resistor is an essential component for prototyping, repair, and professional electronic product development.
Applications
- LED Current Limiting
- Signal Termination
- Driver Circuits
- Communication Interfaces
- Voltage Divider Networks
- Arduino Projects
- STM32 Development Boards
- ESP32 & ESP8266 Projects
- Raspberry Pi Projects
- Embedded Systems
- IoT Devices
- Robotics
- PCB Prototyping
- Industrial Electronics
- Electronics Repair
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 100Ω Fixed Resistor |
| Device Type | Fixed Resistor |
| Resistance | 100Ω (100 Ohms) |
| Quantity | 100 Pieces |
| Tolerance | ±1% or ±5% (Typical) |
| Power Rating | 1/4W (0.25W) Typical |
| Mounting Type | Through-Hole (THT) or Surface Mount (SMD) |
| Operating Temperature | Model Dependent |
| Temperature Coefficient | Model Dependent |
| Applications | Current Limiting, Signal Termination, LED Circuits, Driver Circuits, Embedded Systems |
