Description

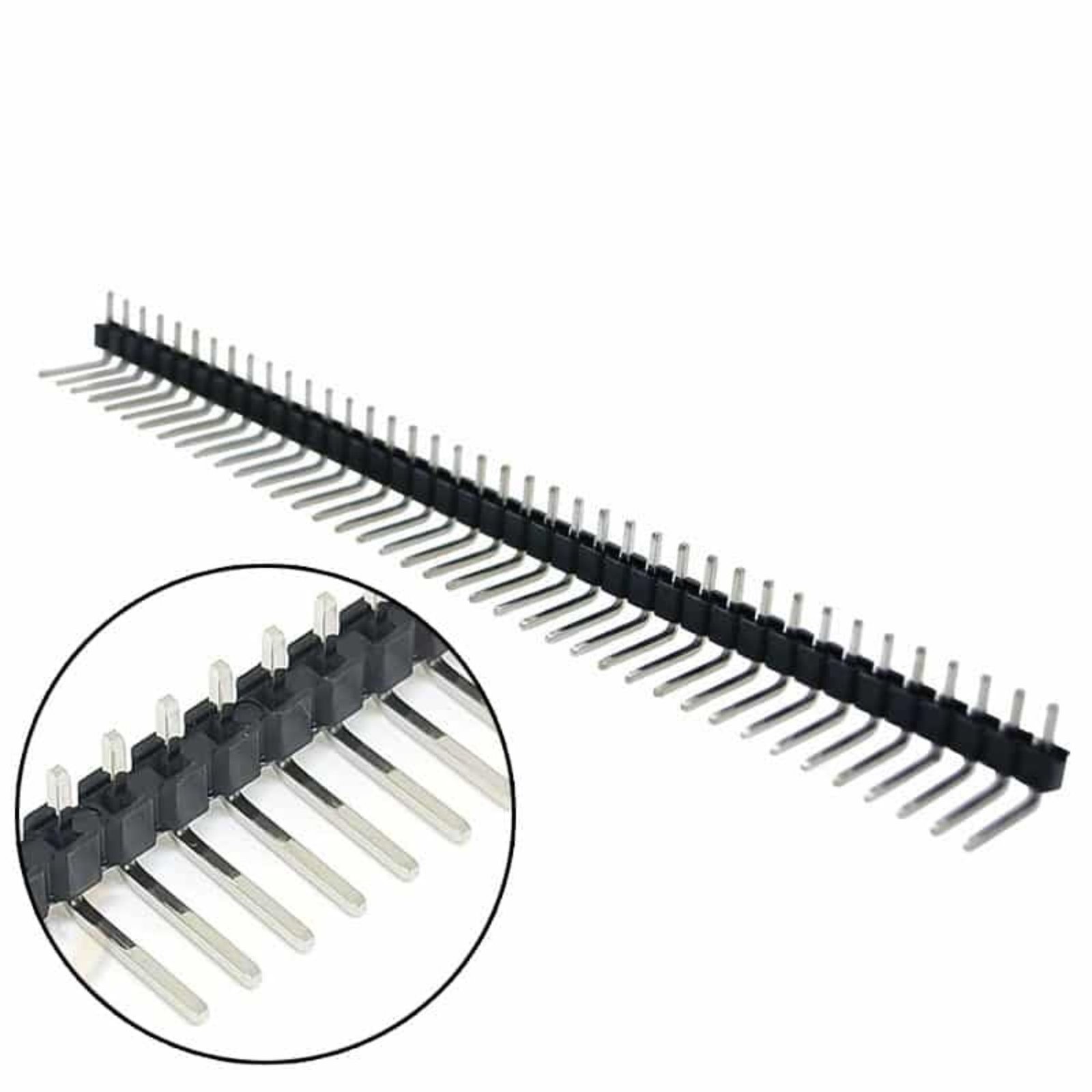

Male Right Angle Berg Strip (40×1) 2.54mm Pin Header for PCB & Embedded Systems

The Male Right Angle Berg Strip (40×1) is a high-quality single-row right-angle pin header connector designed for reliable horizontal PCB connections in embedded systems and electronic projects. Featuring a standard 2.54 mm (0.1 inch) pin pitch, it is compatible with female Berg strips, jumper wires, ribbon cable connectors, and a wide range of development boards.

Its 90-degree right-angle configuration allows connectors and cables to exit parallel to the PCB, making it an excellent choice for applications where vertical space is limited or improved cable routing is required. This space-saving design enhances airflow, simplifies enclosure integration, and provides easy access to external connections.

Designed for through-hole (THT) PCB mounting, the connector offers excellent mechanical strength and reliable electrical performance. The 40-pin single-row strip can be easily cut into smaller sections, allowing custom pin counts for prototype and production PCB designs.

The Male Right Angle Berg Strip (40×1) is widely used with Arduino, STM32, ESP32, ESP8266, Raspberry Pi, sensor modules, communication modules, industrial controllers, robotics, IoT devices, and educational electronics projects.

Whether you’re building a custom PCB, designing an embedded product, or creating a compact hardware interface, this right-angle pin header provides a durable, reliable, and professional connection solution.

Applications

• Arduino Projects
• STM32 Development Boards
• Raspberry Pi Projects
• ESP32 & ESP8266 Projects
• Sensor Modules
• Communication Modules
• Embedded Systems
• PCB Prototyping
• Breadboards
• Robotics
• IoT Devices
• Industrial Automation
• Development Boards
• Educational Electronics

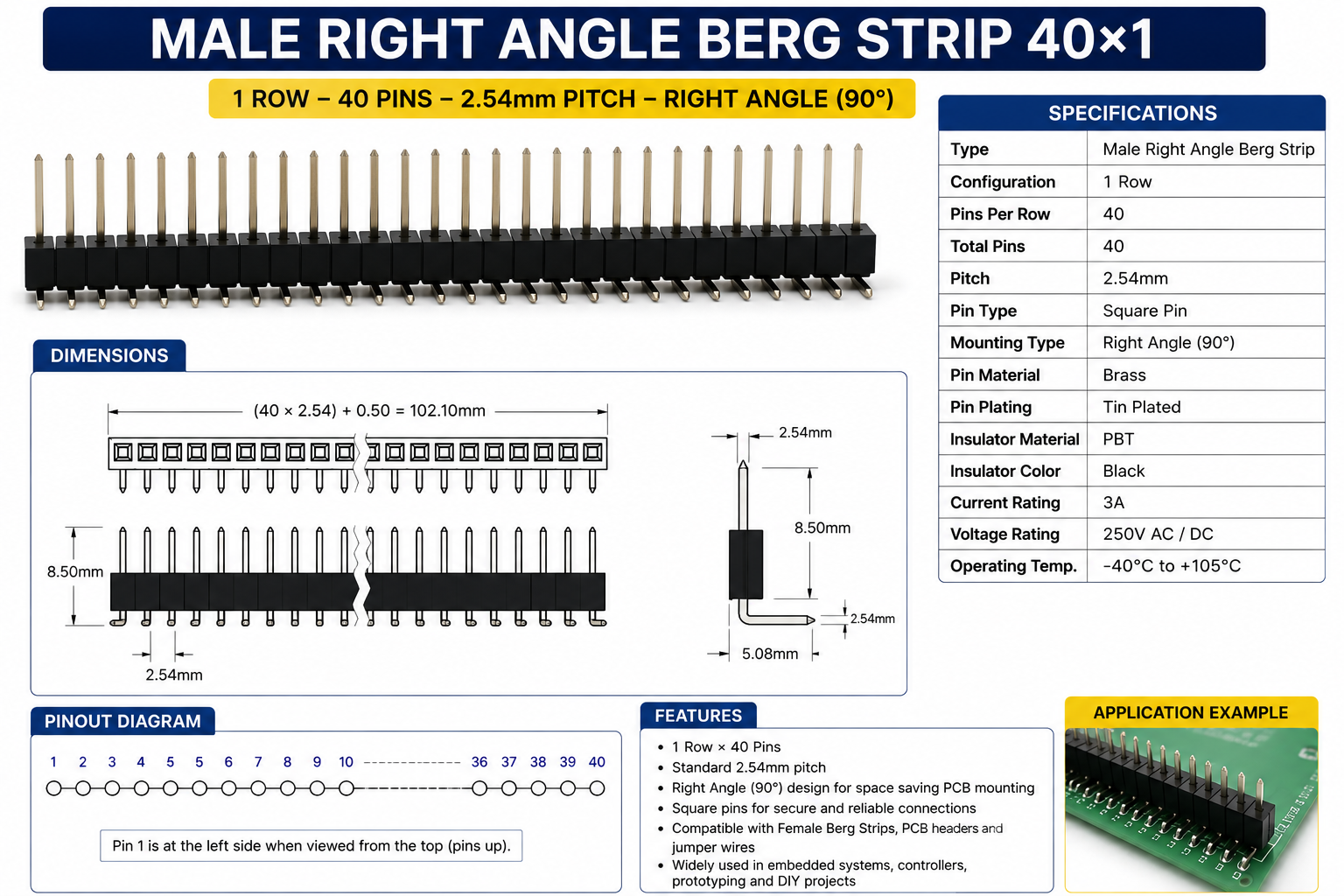

Technical Specifications
