Description

USB Type-B Female Panel Mount Power Cable with Wire Leads

The USB Type-B Female Panel Mount Power Cable is a practical and reliable connector designed to provide a secure 5V USB power input for embedded systems, custom electronic projects, industrial equipment, and DIY applications. Unlike standard USB cables, this panel-mount connector is intended to be installed directly into an enclosure, allowing users to conveniently connect a standard USB Type-B cable from the outside of the device.

Equipped with pre-attached wire leads, this connector simplifies installation by eliminating the need for complex PCB soldering. The wire leads can be directly soldered to a circuit board or connected to terminal blocks, making it ideal for prototypes, repair work, and production designs.

The connector uses the industry-standard USB Type-B Female interface, commonly found on printers, scanners, laboratory instruments, and development hardware. It provides a regulated 5V DC power input and is suitable for powering microcontroller boards, embedded controllers, IoT devices, industrial electronics, and other low-voltage circuits.

Depending on the model, the connector may support power-only connections using the VBUS (+5V) and GND lines, or it may expose all four USB 2.0 pins (VBUS, D+, D−, and GND) for applications requiring both power and data communication. Users should verify the specific version when data transfer functionality is required.

Its robust panel-mount construction ensures a firm mechanical installation, reducing cable stress and improving the durability of finished products. The connector is suitable for equipment that requires frequent USB cable insertion and removal while maintaining reliable electrical contact.

Common applications include custom electronic enclosures, embedded systems, Arduino and STM32 projects, industrial control equipment, laboratory instruments, development boards, robotics, and USB-powered devices.

Whether you’re designing a new product, upgrading an existing enclosure, or building a DIY electronics project, the USB Type-B Female Panel Mount Power Cable provides a professional, durable, and easy-to-install USB power interface.

Applications

• Embedded Systems
• Arduino Projects
• STM32 Development Boards
• DIY Electronics
• Industrial Automation
• Robotics
• IoT Devices
• Custom Electronic Enclosures
• Laboratory Equipment
• Development Boards
• USB-Powered Devices
• Electronic Repair Projects

Technical Specifications

Specification	Details
Product Name	USB Type-B Female Panel Mount Power Cable
Connector Type	USB Type-B Female
Mounting Type	Panel Mount
USB Standard	USB 2.0
Input Voltage	5V DC
Wire Leads	Pre-attached

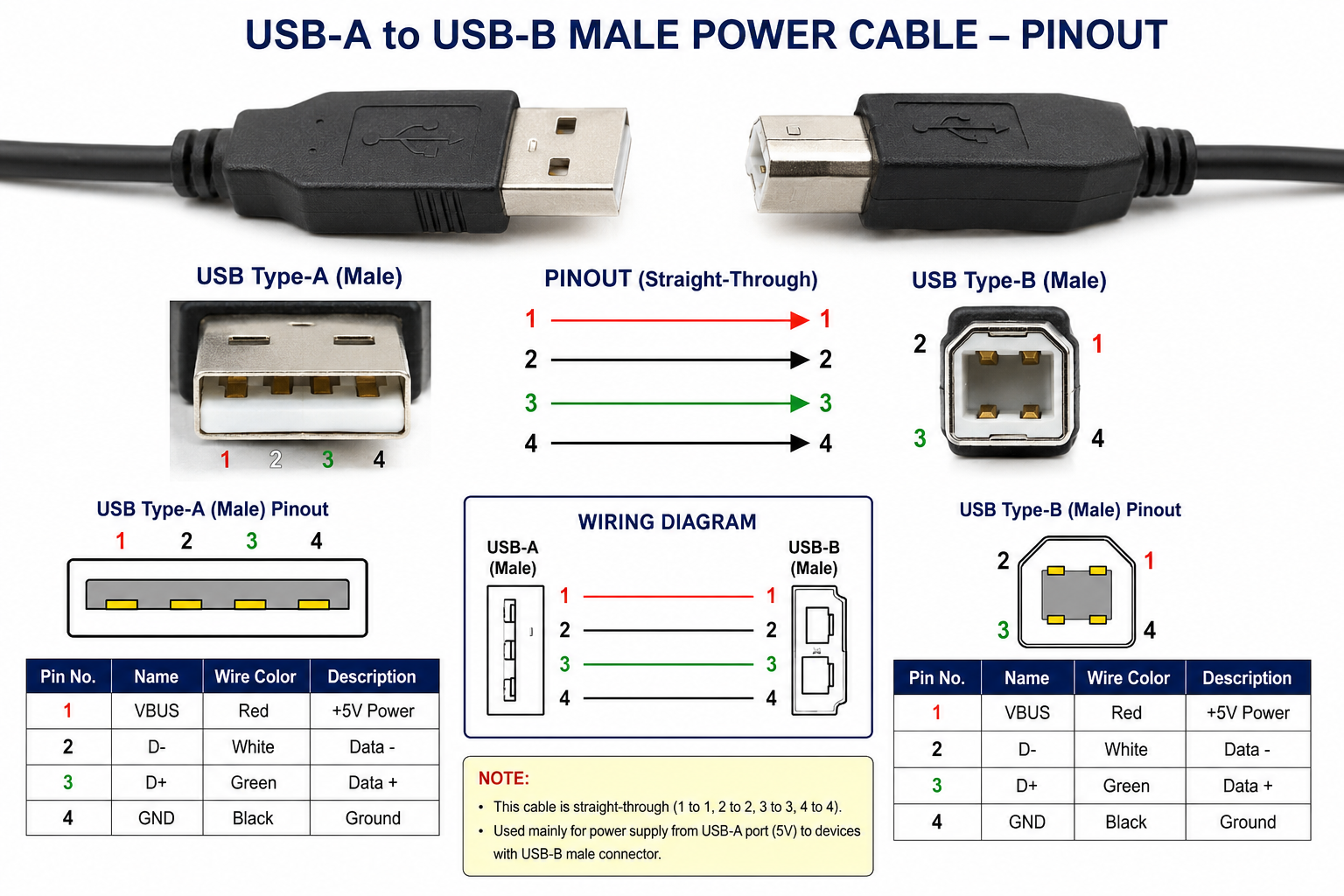

Supported Pins	VBUS (+5V), GND (Power Only) or VBUS, D+, D−, GND (Model Dependent)
Power Delivery	5V USB Power
Data Transfer	Supported on 4-wire models
Current Rating	Typically 1A–2A (Model Dependent)
Housing Material	High-Strength Plastic
Applications	Embedded Systems, DIY Electronics, Development Boards, Industrial Equipment
