Description

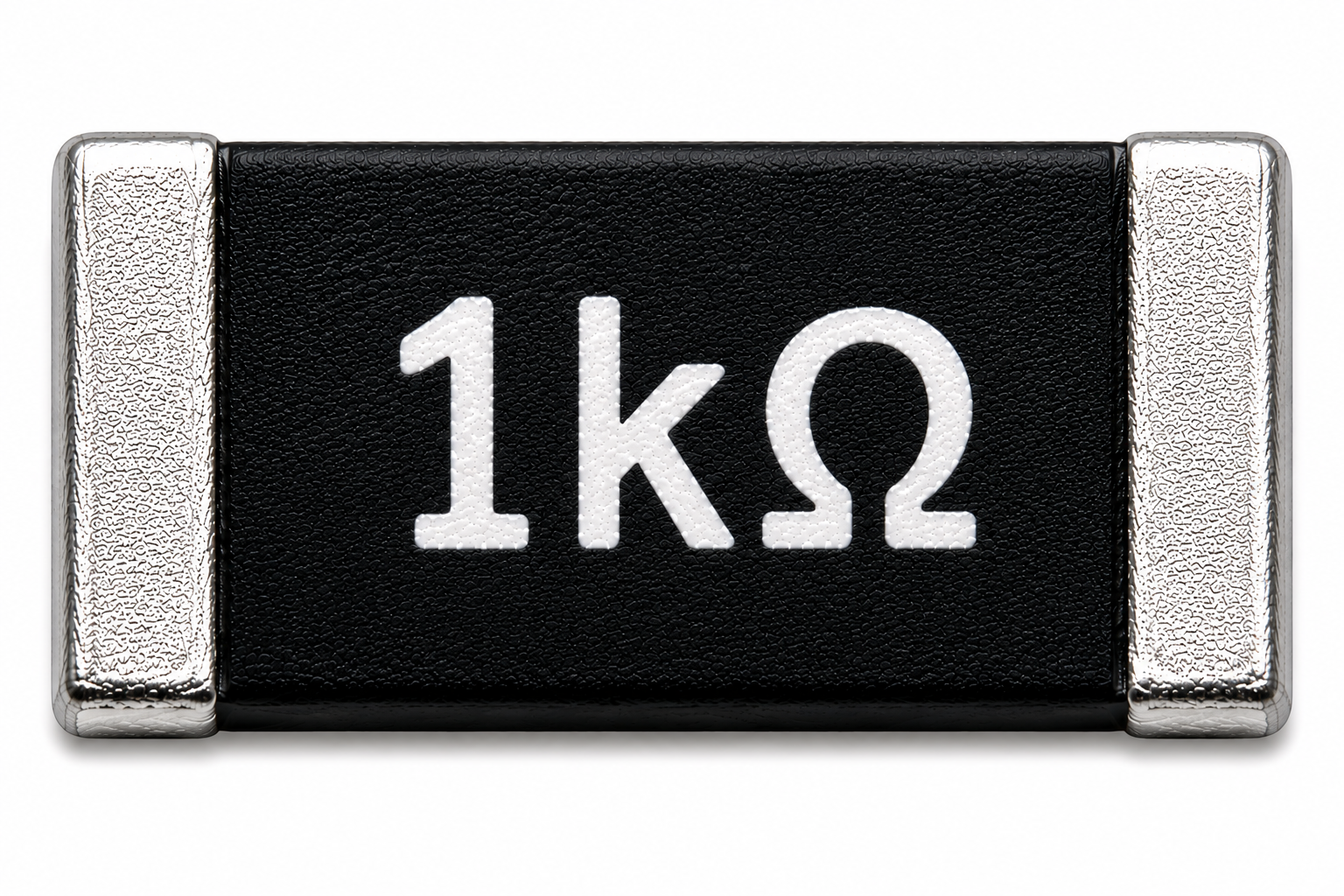

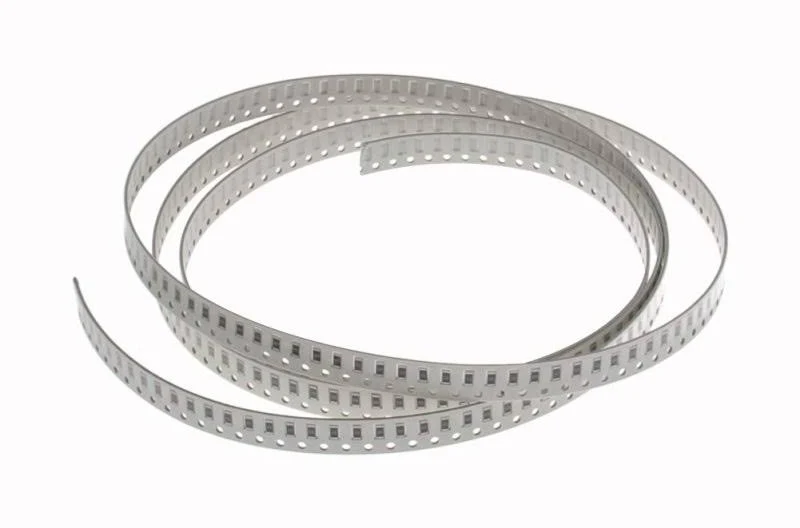

1kΩ SMD Resistor (1 Kilo Ohm Chip Resistor)
The 1kΩ SMD Resistor is a high-quality surface-mount fixed resistor designed to provide accurate resistance and reliable performance in electronic circuits. It is commonly used for current limiting, voltage division, transistor biasing, pull-up/pull-down networks, signal conditioning, and circuit protection.
Its compact SMD chip package enables space-efficient PCB layouts and supports automated Surface Mount Technology (SMT) assembly, making it suitable for both prototype and mass-production electronics.
The 1kΩ chip resistor delivers stable electrical characteristics, low power consumption, and excellent long-term reliability. It is widely used in Arduino, STM32, ESP32, ESP8266, Raspberry Pi modules, embedded systems, IoT devices, industrial controllers, communication circuits, and consumer electronics.
Whether you’re designing a custom PCB, repairing electronics, or developing embedded hardware, this 1kΩ SMD resistor is an essential component for reliable circuit performance.
Applications
- LED Current Limiting
- Transistor Biasing
- Pull-Up Circuits
- Pull-Down Circuits
- Voltage Divider Networks
- Signal Conditioning
- Arduino Projects
- STM32 Development Boards
- ESP32 & ESP8266 Projects
- Raspberry Pi Projects
- Embedded Systems
- IoT Devices
- Robotics
- PCB Prototyping
- Industrial Electronics
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 1kΩ Fixed Resistor |
| Device Type | Fixed Resistor |
| Resistance | 1kΩ (1000 Ohms) |
| Tolerance | ±1% or ±5% (Typical) |
| Power Rating | 1/4W (0.25W) Typical |
| Mounting Type | Through-Hole (THT) or Surface Mount (SMD) |
| Operating Temperature | Model Dependent |
| Temperature Coefficient | Model Dependent |
| Applications | LED Current Limiting, Voltage Divider, Pull-up/Pull-down Circuits, Embedded Systems |
