Description

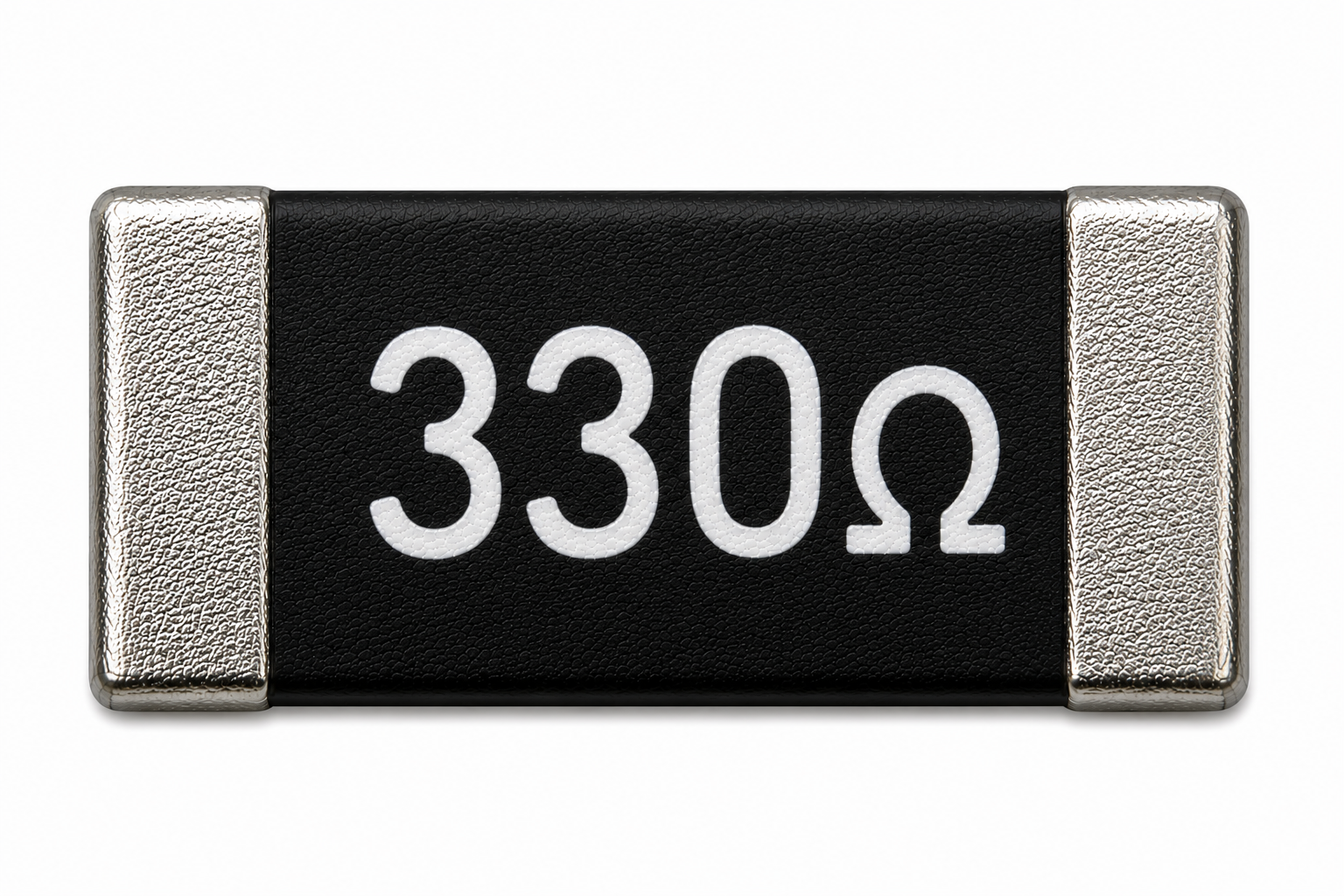

330Ω SMD Resistor (330 Ohm Chip Resistor)
The 330Ω SMD Resistor is a high-quality surface-mount fixed resistor designed to provide accurate resistance and dependable performance in electronic circuits. It is widely used for current limiting, voltage division, pull-up/pull-down networks, signal conditioning, and circuit protection in a wide range of electronic applications.
Its compact SMD chip package allows high-density PCB layouts and supports automated Surface Mount Technology (SMT) assembly, making it suitable for both prototype development and mass production.
The 330Ω chip resistor is commonly used in LED current-limiting circuits, communication interfaces, driver circuits, sensor modules, embedded systems, and IoT devices. It is fully compatible with Arduino, STM32, ESP32, ESP8266, Raspberry Pi, and custom PCB designs.
Offering stable electrical characteristics, low power consumption, and long-term reliability, this resistor is an essential component for modern electronic circuit design.
Applications
- LED Current Limiting
- Driver Circuits
- Signal Conditioning
- Signal Termination
- Voltage Divider Networks
- Arduino Projects
- STM32 Development Boards
- ESP32 & ESP8266 Projects
- Raspberry Pi Projects
- Embedded Systems
- IoT Devices
- Robotics
- PCB Prototyping
- Industrial Electronics
- Electronics Repair
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 330Ω Fixed Resistor |
| Device Type | Fixed Resistor |
| Resistance | 330Ω (330 Ohms) |

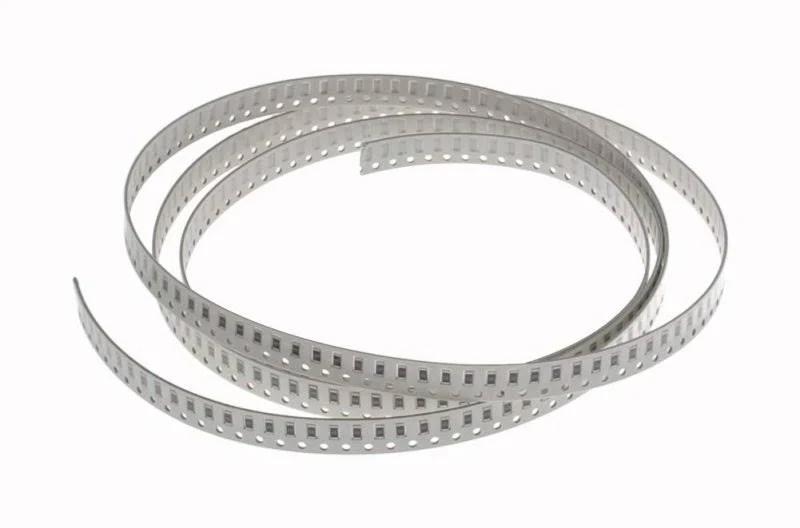

| Quantity | 100 Pieces |
| Tolerance | ±1% or ±5% (Typical) |
| Power Rating | 1/4W (0.25W) Typical |
| Mounting Type | Through-Hole (THT) or Surface Mount (SMD) |
| Operating Temperature | Model Dependent |
| Temperature Coefficient | Model Dependent |
| Applications | LED Current Limiting, Driver Circuits, Signal Conditioning, Embedded Systems |
