Description

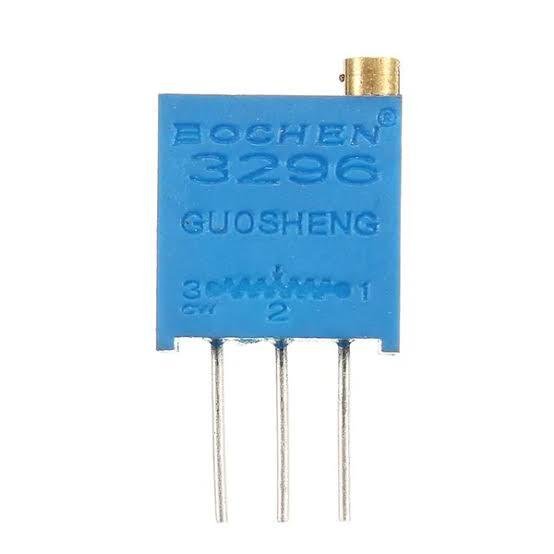

3296 5kΩ Multi-Turn Trimmer Potentiometer (Through-Hole)

The 3296 5kΩ Multi-Turn Trimmer Potentiometer is a precision variable resistor designed for accurate circuit calibration and adjustment applications. It allows fine resistance adjustment through a multi-turn screw mechanism, providing better control compared to standard single-turn potentiometers.

The 3296 series trimmer potentiometer features a compact through-hole (THT) mounting design, making it easy to integrate into PCB layouts. Its multi-turn adjustment capability provides high resolution and precise tuning, making it suitable for applications where accurate voltage or resistance control is required.

This 5kΩ adjustable potentiometer is commonly used for voltage regulation, sensor calibration, LCD contrast adjustment, amplifier tuning, reference voltage adjustment, and analog circuit calibration.

Compatible with Arduino, STM32, ESP32, IoT devices, power supply circuits, measurement equipment, and industrial control systems, the 3296 potentiometer provides reliable performance and long-term stability.

Applications

• Voltage Adjustment Circuits
• Sensor Calibration
• Power Supply Adjustment
• LCD Contrast Adjustment
• Amplifier Tuning
• Reference Voltage Setting
• Arduino Projects
• STM32 Development Boards
• ESP32 Applications
• Embedded Systems
• IoT Devices
• Industrial Control Systems
• Test and Measurement Equipment
• PCB Prototyping

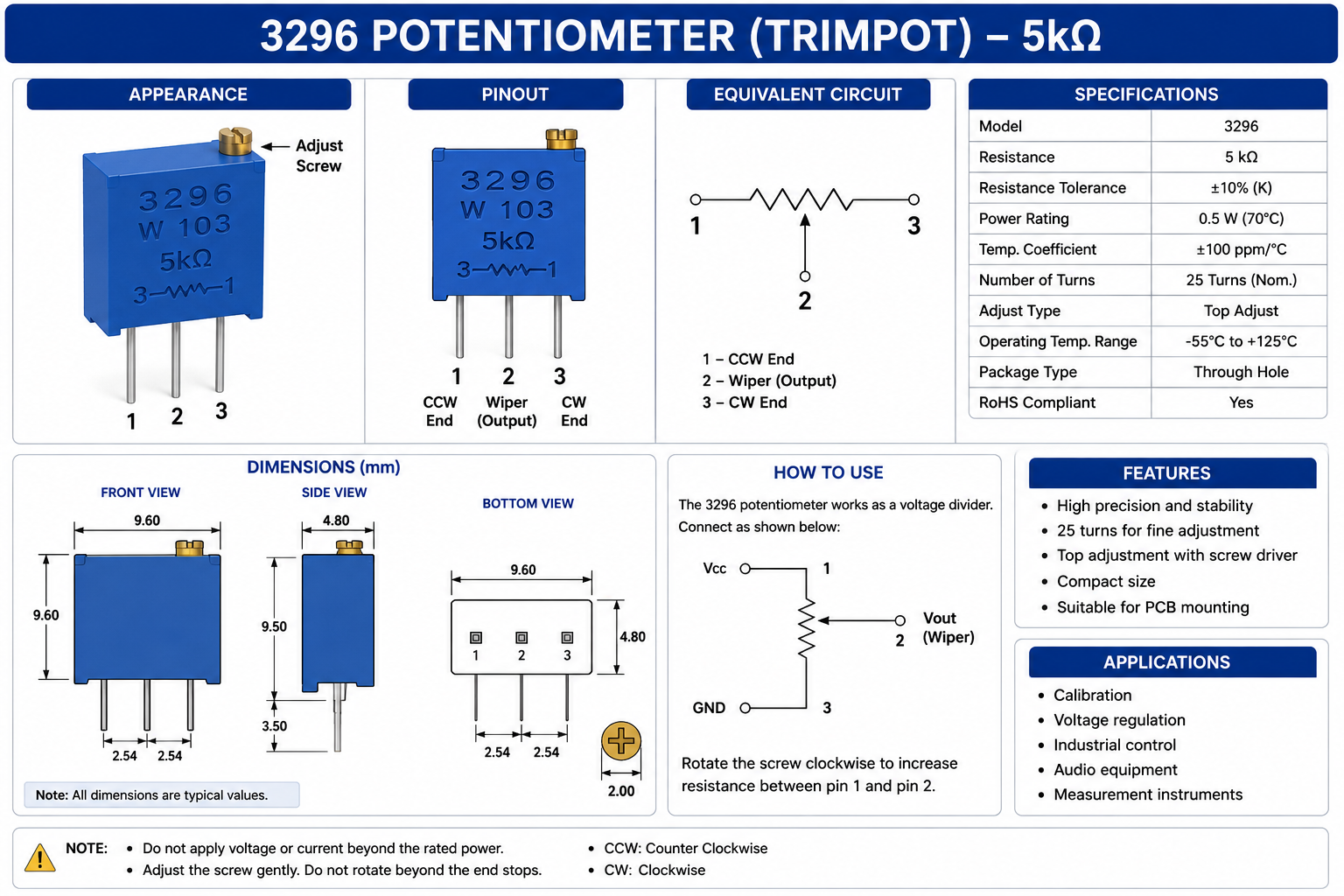

Technical Specifications
