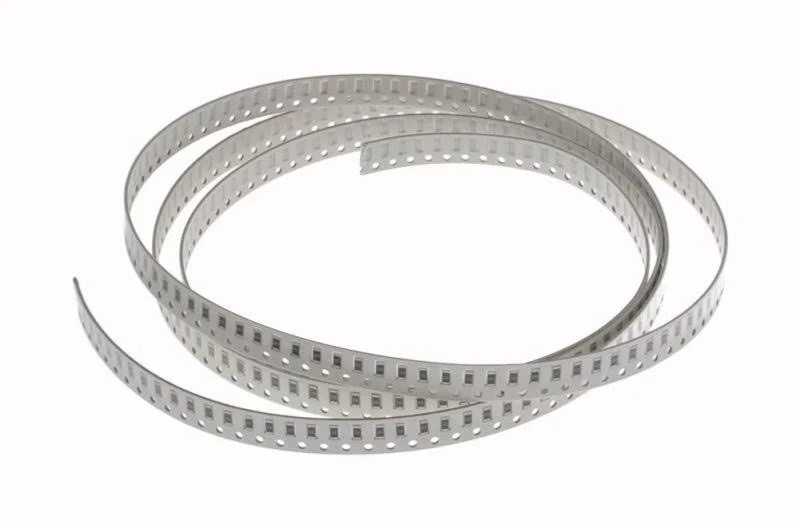

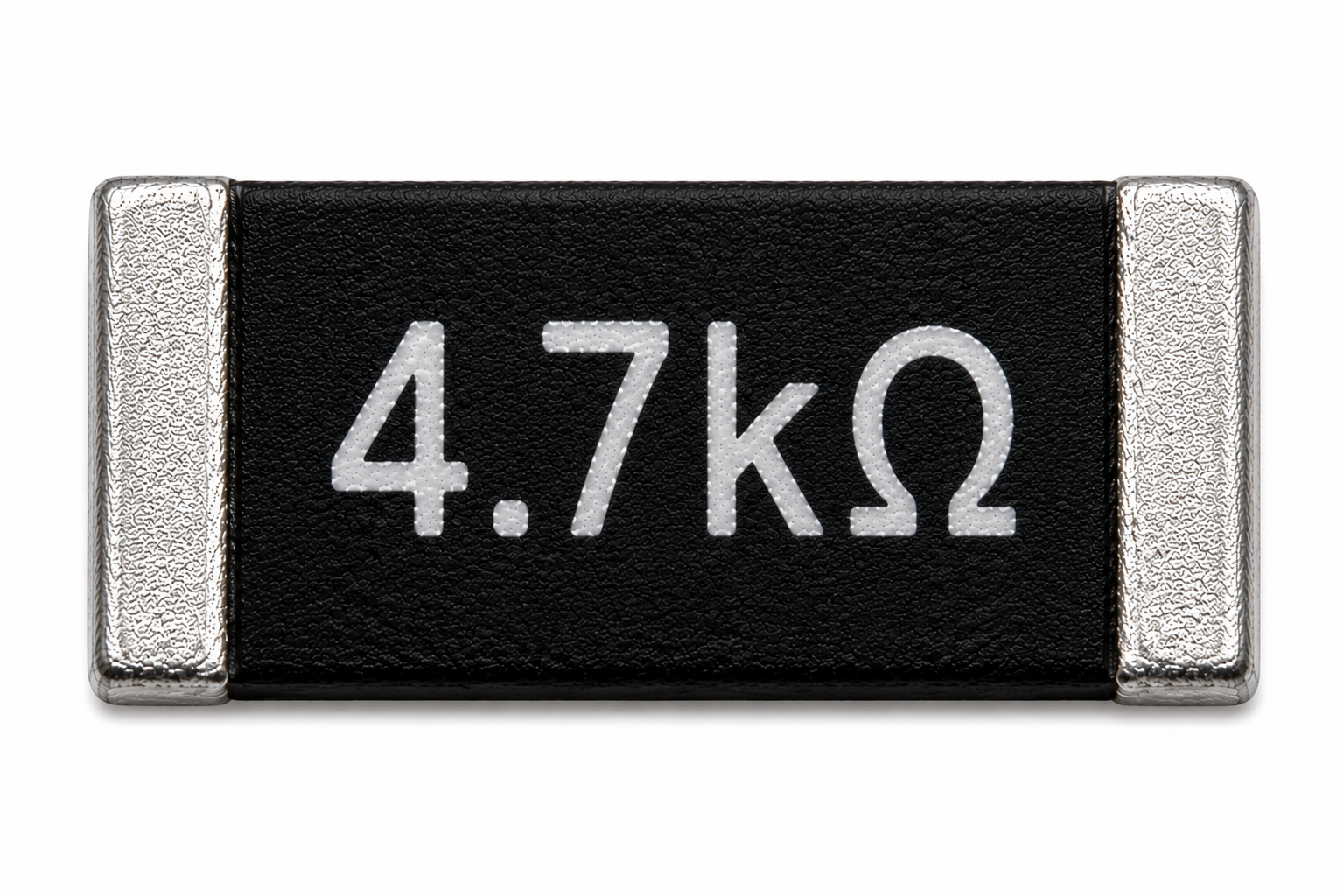

4.7kΩ SMD Resistor (4.7 Kilo Ohm Chip Resistor)
The 4.7kΩ SMD Resistor is a precision surface-mount fixed resistor designed to provide stable resistance and reliable performance in electronic circuits. It is widely used for pull-up and pull-down networks, voltage division, transistor biasing, signal conditioning, and circuit protection in embedded and digital electronic applications.
Its compact SMD chip package enables space-saving PCB layouts and supports automated Surface Mount Technology (SMT) assembly, making it suitable for both prototyping and high-volume production.
The 4.7kΩ chip resistor is commonly used in microcontroller circuits, sensor interfaces, communication modules, embedded systems, industrial controllers, and IoT devices. It is fully compatible with Arduino, STM32, ESP32, ESP8266, Raspberry Pi, and custom PCB designs.
With stable electrical characteristics, excellent reliability, and low power consumption, the 4.7kΩ SMD resistor is an essential component for modern electronic circuit design and PCB assembly.
Applications
- Pull-Up Circuits
- Pull-Down Circuits
- LED Current Limiting
- Transistor Biasing
- Voltage Divider Networks
- Signal Conditioning
- Arduino Projects
- STM32 Development Boards
- ESP32 & ESP8266 Projects
- Raspberry Pi Projects
- Embedded Systems
- IoT Devices
- Robotics
- PCB Prototyping
- Industrial Electronics
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 4.7kΩ Fixed Resistor |
| Device Type | Fixed Resistor |
| Resistance | 4.7kΩ (4700 Ohms) |
| Tolerance | ±1% or ±5% (Typical) |
| Power Rating | 1/4W (0.25W) Typical |
| Mounting Type | Through-Hole (THT) or Surface Mount (SMD) |
| Operating Temperature | Model Dependent |
| Temperature Coefficient | Model Dependent |
| Applications | Pull-up/Pull-down Circuits, Voltage Divider, LED Current Limiting, Embedded Systems |
